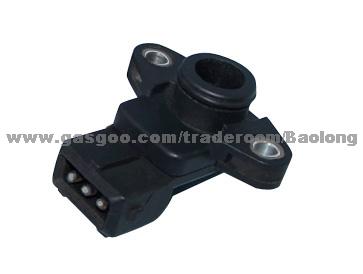

QY1806 Intake Manifold Absolute Pressure Sensor (MAP)

Product Name:

QY1806 Intake Manifold Absolute Pressure Sensor (MAP)

Product Attribute:

Application:

BYD

Product Description:

Summary of Product

The diffusion silicon pressure sensor of model QY1800 is a kind of silicon piezoresistive pressure sense organ using the advanced MEMS technology and integrating the modern information processing technology which is to convert pressure signal to standard voltage signal. The intelligentized compensation technology solved the inherent problem of silicon piezoresistive pressure sense organ on temperature drift, Which shows off the advantage of diffusion silicon pressure sensor.

QY1806 Intake manifold absolute pressure sensor (MAP)

QY1806 MAP intake manifold absolute pressure sensor is a kind of silicon pressure sensor which use advanced MEMS and silicon bonding technology that makes the sensor have much better stability, Integrating ASIC technology in the design to achieve high- Accuracy pressure measurements in the whole working temperature range and has been in mass production

Specification

Application: Pressure measurement of engine intake manifold

Pressure Range          0115KpaCustomization is available

Accuracy                      2%typical

The highest accuracy can be 1% in the whole

      temperature range

Overloading Capability ≥ 200%FS

Power Supply              4. 5V~5. 5V

Power Consumption    ≤ 5mA

Output Voltage              0. 5~4. 5VCustomization is available

Response Time            ≤ 1ms

Operating temperature range- 40~125

temperature drift range - 20~100 - 40~125other is available

medium compatibility     Non- Conductive & On- Corrosive gas compatible

with the silicon
